Product details

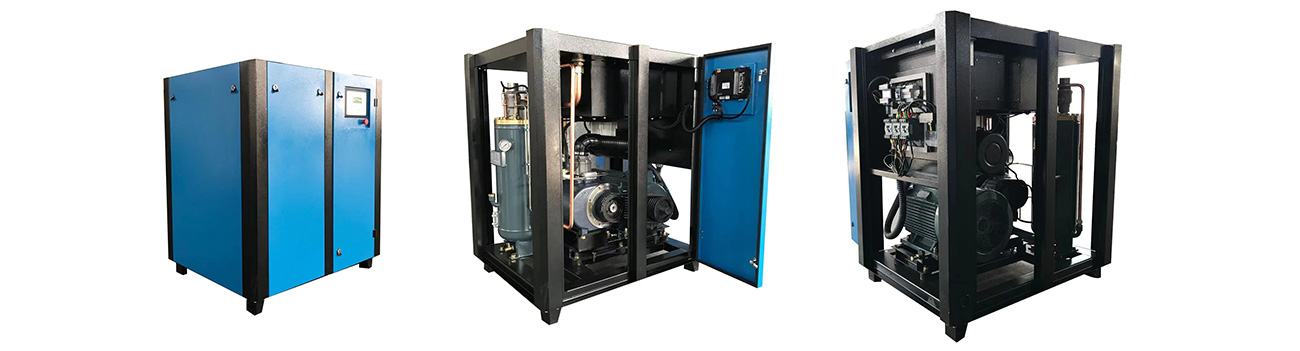

DFB-50A(37KW)

Technical parameters of belt air-cooled compressor
Model Exhaust volume/exhaust pressure Power Weight External dimensions Export pipe diameter Noise
DFB-50A 6.58/0.7 6.26/0.8 5.80/1.0 5.06/1.2 37 840 1140×920×1360 G1 1/2" 65±2

Compressor stage: single-stage；Exhaust temperature(℃)：≤ambient temperature +15℃；power supply(V/Ф/Hz): 380、460/3/50、 60
ambient temperature(℃)：-5℃~+45℃；Drive mode: belt drive；Startup method: Y-△；Cooling method: air cooling
