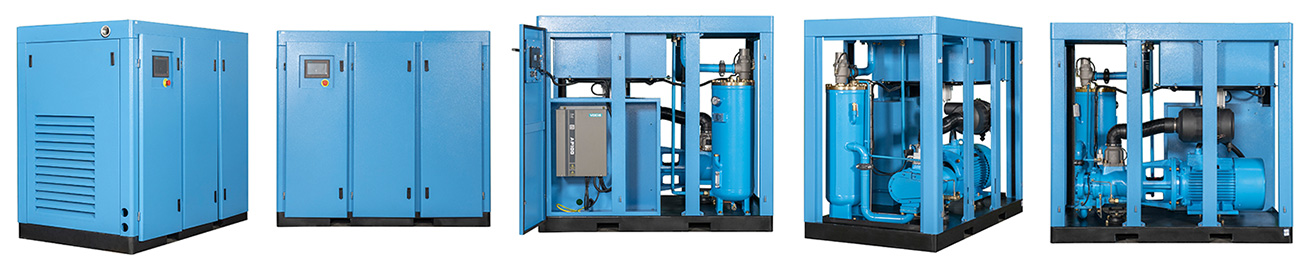

MPV-100A

MPV-100A performance parameter
name Direct connected permanent magnet screw compressor model MPV-100A
displacement，m3/min 12.0 Exhaust pressure，Mpa 0.8
opening pressure of safety valve，Mpa 0.96 Temperature at the outlet of the cooler，℃ ≤ambient temperature+15
Exhaust oil content，mg/m3 2～4 Lubricant quantity，L 55
Compressed medium air Transmission mode Elastic coupling device
Motor model SMF-K25-075302 motor speed，r/min 3000
Motor rated power，KW 75 Motor power specifications 380V/200Hz/3P
Protection class IP23 Motor service coefficient 1.2
Insulation Class F Motor starting method Variable frequency start
Type AC100-T3-75K Inverter brand Weichuang
Protection level of frequency converter IP54 Maximum output current of frequency converter 150A
Compressor cooling method forced air cooling Compressor control mode intelligent controller
Cooling fan power(W) 1800 Cooling air volume, m3/h 17000
Compressor noisedB（A） 76±3 Exhaust port size Rp2
External dimensions（L×W×H）mm 1980×1170×1630 weight（Kg） 1460
