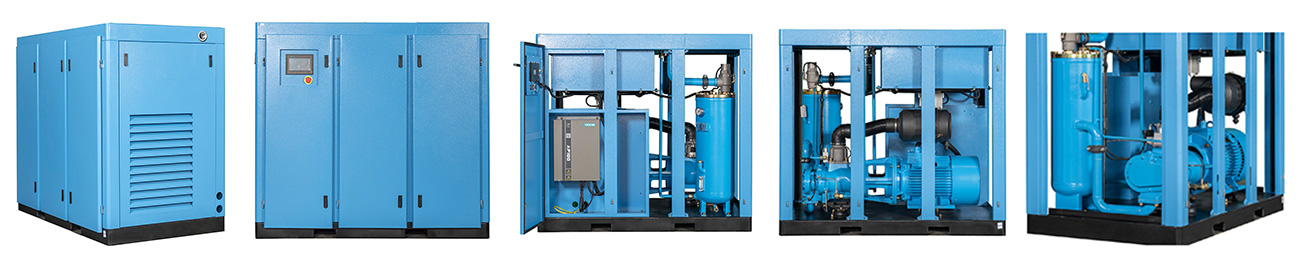

MPV-75A

MPV-75A performance parameter
name Direct connected permanent magnet screw compressor model MPV-75A
displacement，m3/min 9.2 Exhaust pressure，Mpa 0.8
opening pressure of safety valve，Mpa 0.96 Temperature at the outlet of the cooler，℃ ≤ambient temperature+15
Exhaust oil content，mg/m3 2～4 Lubricant quantity，L 45
Compressed medium air Transmission mode Elastic coupling device
Motor model S25.4175F30-55 motor speed，r/min 3000
Motor rated power，KW 55 Motor power specifications 380V/50Hz/3P
Protection class IP23 Motor service coefficient 1.15
Insulation Class F Motor starting method Variable frequency start
Type AC100-T3-55K Inverter brand Shenzhen Weichuang
Protection level of frequency converter IP54 Maximum output current of frequency converter 110A
Compressor cooling method forced air cooling Compressor control mode intelligent controller
Cooling fan power(W) 1100 Cooling air volume, m3/h 10500
Compressor noisedB（A） 70±3 Exhaust port size Rp2
External dimensions（L×W×H）mm 1720×1120×1570 weight（Kg） 1080
