Product details

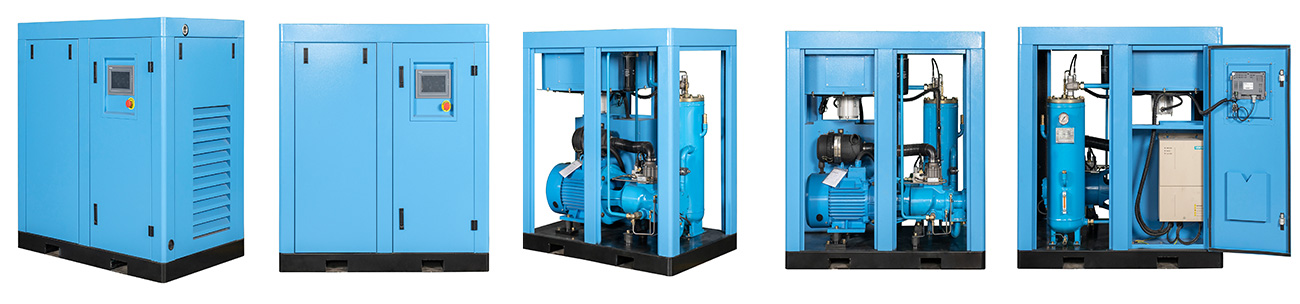

MPV-30A

MPV-30A performance parameter
name Direct connected permanent magnet screw compressor model MPV-30A
displacement，m3/min 3.4 Exhaust pressure，Mpa 0.8
opening pressure of safety valve，Mpa 0.96 Temperature at the outlet of the cooler，℃ ≤ambient temperature+15
Exhaust oil content，mg/m3 2～4 Lubricant quantity，L 25
Compressed medium air Transmission mode Elastic coupling device
Motor model S18.670F30-22 motor speed，r/min 3000
Motor rated power，KW 22 Motor power specifications 380V/50Hz/3P
Protection class IP54 Motor service coefficient 1.15
Insulation Class F Motor starting method Variable frequency start
Type AC100-T3-22K Inverter brand Shenzhen Weichuang
Protection level of frequency converter IP54 Maximum output current of frequency converter 45A
Compressor cooling method forced air cooling Compressor control mode intelligent controller
Cooling fan power(W) 550 Cooling air volume, m3/h 5000
Compressor noisedB（A） 65±3 Exhaust port size Rp1
External dimensions（L×W×H）mm 1350×860×1295 weight（Kg） 520
