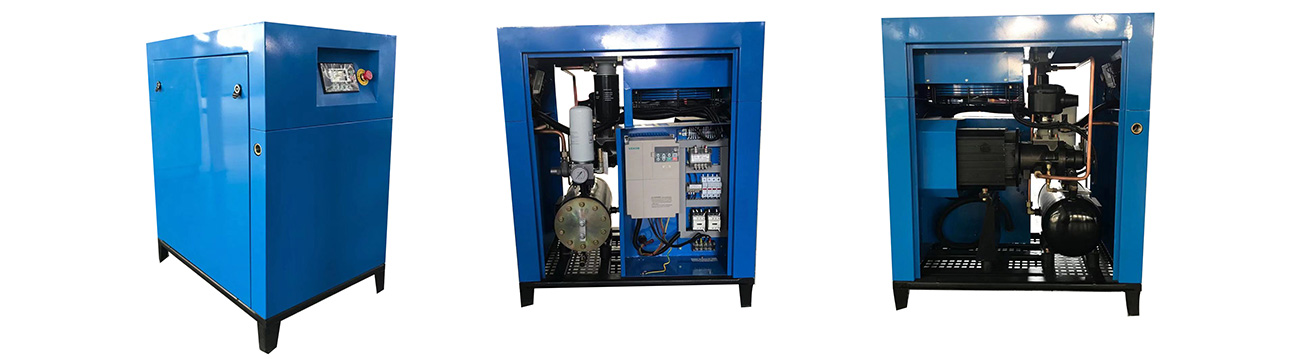

MPV-10A

MPV-10A performance parameter
name Direct connected permanent magnet screw compressor model MPV-10A
Rated displacement，m3/min 1.1 Exhaust pressure，Mpa 0.8
opening pressure of safety valve，Mpa 0.96 Gas supply outlet temperature，℃ ≤85
Exhaust oil content，mg/m3 2～4 Lubricant quantity，L 8
Compressed medium air Transmission mode Elastic coupling device
Motor model YPM55A motor speed，r/min 3500
Motor rated power，KW 7.5 Motor power specifications 380V/233Hz/3P
Protection class IP54 Motor service coefficient 1.15
Insulation Class F Motor starting method Variable frequency start
Type AT500-T3-7R5G Inverter brand Aikte/Weichuang
Protection level of frequency converter IP23 Maximum output current of frequency converter 17A
Compressor cooling method forced air cooling Compressor control mode intelligent controller
Cooling fan power(W) 150 Cooling air volume, m3/h 1800
Compressor noisedB（A） 65±3 Exhaust port size Rp3/4
External dimensions（L×W×H）mm 860×600×1000 weight（Kg） 220
