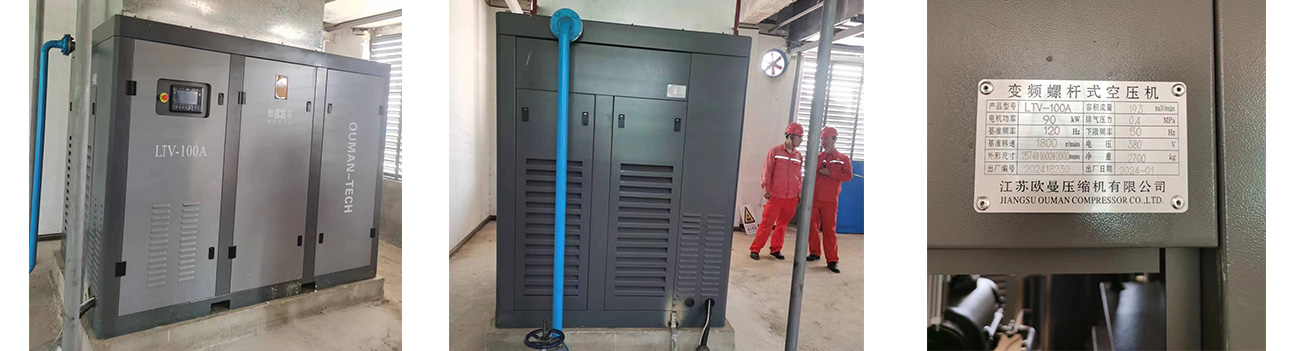

LTV-100A-B4

LTV-100A-B4 Parameter Table of Permanent Magnet Variable Frequency Low Voltage Double stage Compression Screw Air Compressor Equipment
name Low voltage permanent magnet variable frequency two-stage compressor model LTV-100A-B4
displacement，m3/min 19.3 Exhaust pressure，Mpa 0.4
opening pressure of safety valve，Mpa 0.5 Temperature at the outlet of the cooler，℃ ≤ambient temperature+18
Exhaust oil content，mg/m3 2～4 Lubricant quantity，L 90
Compressed medium air Transmission mode Elastic coupling direct connection
Motor model TYCP250M1-8 motor speed，r/min 1800
Motor rated power，KW 75 Motor power specifications 380V/120Hz/3P
Protection class IP54 Motor service coefficient 1.3
Insulation Class F Motor starting method Variable frequency start
Type AC100-T3-75K Inverter output current，A 150A
Protection level of frequency converter IP20 Inverter brand Weichuang
Compressor cooling method forced air cooling Compressor control mode intelligent controller
Cooling fan power(W) 3000 Cooling air volume, m3/h 20000
Compressor noise dB（A） 75±3 Exhaust port size flange DN65 PN16  HG/T20592
External dimensions（L×W×H）mm 2574×1600×2000 weight（Kg） 2700
