Product details

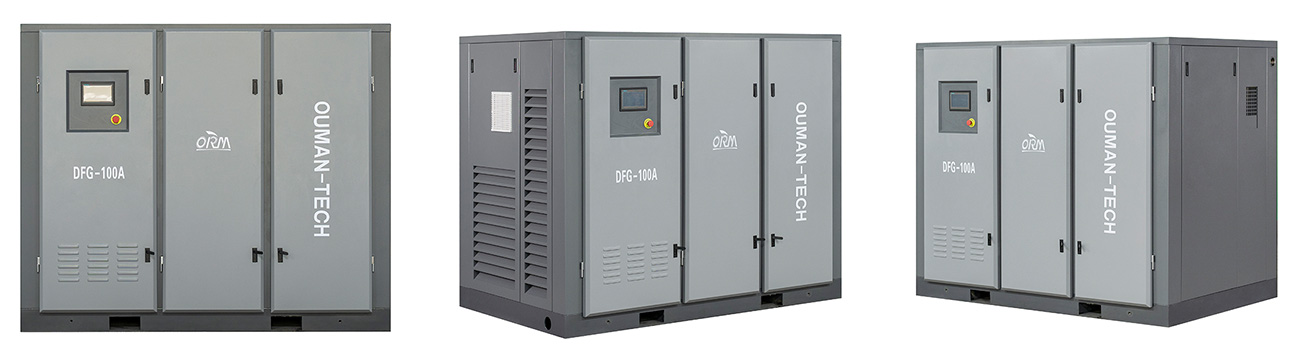

DFG-100A

Technical parameters of direct air-cooled compressor
Model Exhaust volume/exhaust pressure Power Weight External dimensions Export pipe diameter Noise
DFG-100A 13.5/0.7 12.7/0.8 11.3/1.0 10.0/1.3 75 1820 1850×1080×1660 G2” 68±2

Compressor stage: single-stage；Exhaust temperature(℃)：≤ambient temperature +15℃；power supply(V/Ф/Hz): 380、460/3/50、 60
ambient temperature(℃)：-5℃~+45℃；Drive mode: direct connection；Startup method: Y-△；Cooling method: air cooling
