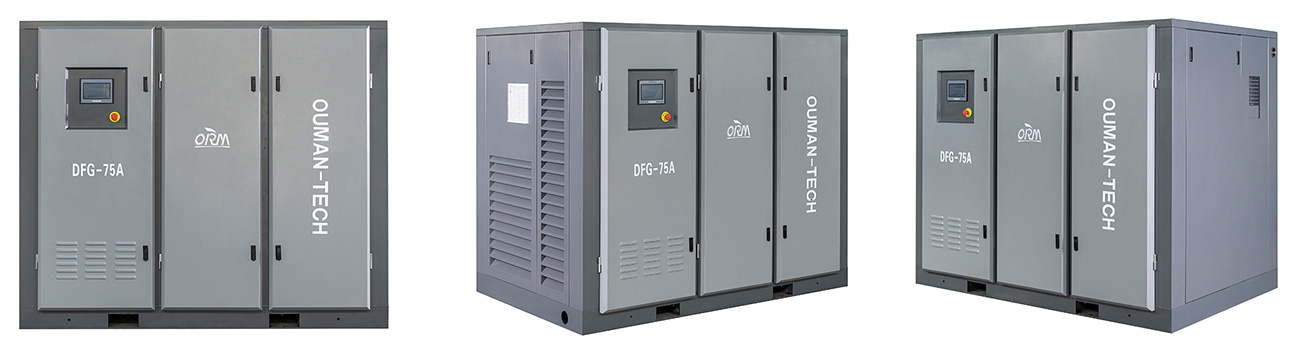

DFG-75A

Technical parameters of direct air-cooled compressor
Model Exhaust volume/exhaust pressure Power Weight External dimensions Export pipe diameter Noise
DFG-75A 10.8/0.7 10.1/0.8 8.50/1.0 7.69/1.3 55 1450 1720×1000×1520 G2” 65±2

Compressor stage: single-stage；Exhaust temperature(℃)：≤ambient temperature +15℃；power supply(V/Ф/Hz): 380、460/3/50、 60
ambient temperature(℃)：-5℃~+45℃；Drive mode: direct connection；Startup method: Y-△；Cooling method: air cooling
