Product details

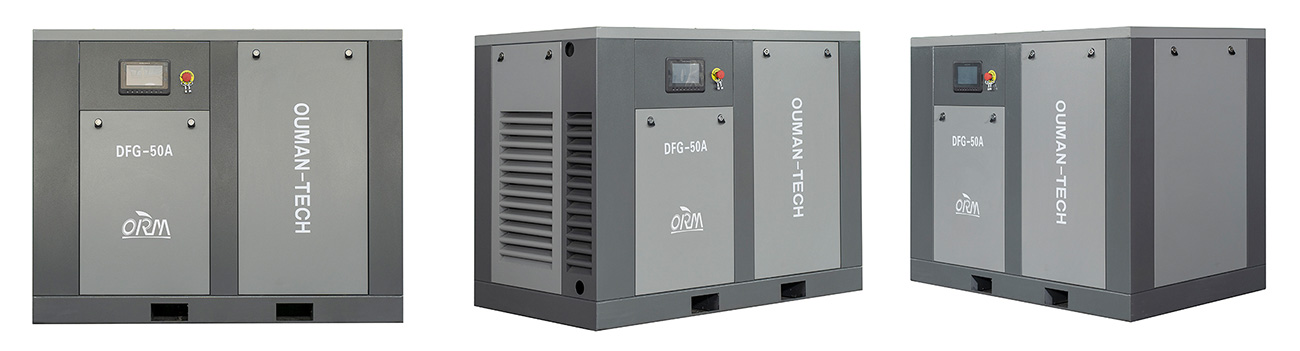

DFG-50A

Technical parameters of direct air-cooled compressor
Model Exhaust volume/exhaust pressure Power Weight External dimensions Export pipe diameter Noise
DFG-50A 6.58/0.7 6.26/0.8 5.80/1.0 5.06/1.3 37 1020 1500×930×1380 G1 1/2" 63±2

Compressor stage: single-stage；Exhaust temperature(℃)：≤ambient temperature +15℃；power supply(V/Ф/Hz): 380、460/3/50、 60
ambient temperature(℃)：-5℃~+45℃；Drive mode: direct connection；Startup method: Y-△；Cooling method: air cooling
