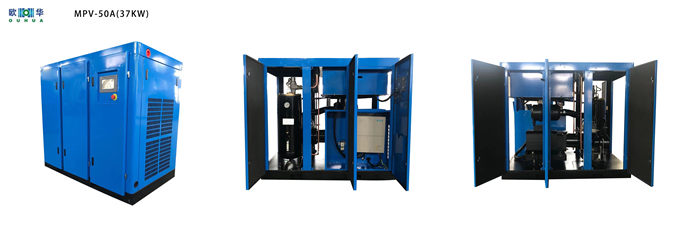

MPV-50A(37KW)

Performance parametersof MPV-50A
Name	Direct-coupled permanent magnet screw compressor	Model	MPV-50A
Exhaust volume, m3 / min	6.3	Exhaust pressure, Mpa	0.8
Opening pressure of safety valve, Mpa	0.96	Cooler outlet temperature, ℃	Ambient temperature +10
Exhaust oil content, mg / m3	2 ～ 4	Lubricant quantity, L	30
Compressed media	air	transfer method	Flexible coupling
Motor Model	GTPY20-37-30	Motor speed, r / min	3000
Motor rated power, KW	37	Motor power specifications	380V / 50Hz / 3P
Motor protection level	IP54	Motor service factor	1.15
Motor insulation level	F	Motor starting mode	Frequency conversion start
Inverter Model	AC100-T3-37K	Inverter brand	Shenzhen Flextronics
Inverter protection level	IP54	Inverter maximum output current	75A
Compressor cooling method	Air-cooled	Compressor control method	smart controller
Cooling fan power (W)	1100	Cooling air volume, m3 / h	10500
Compressor noise dB (A)	65 ± 3	Exhaust port size	Rp1-1 / 2
Overall dimensions (L × W × H) mm	1660 × 1066 × 1460	Weight (Kg)	750
